12 Channel Long Range Customize RF Transmitter And Receiver 220V/12V24V

FOB Reference Price:Get Latest Price
US $10-15 / Pieces | 100 Piece/Pieces long range rf transmitter and receiver (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ZD
Model Number:
RF15
Use:
Universal
Place of Origin:
Zhejiang, China (Mainland)
long range rf transmitter Distance:
100m in open space
long range rf transmitter learning code:
HS1527,EV1527 and so on
long range rf transmitter rolling code:
HCS301
long range rf transmitter warranty:
one year
long range rf transmitter delivery:
15 days
long range rf transmitter certificate:
CE and RoHs
long range rf transmitter MOQ:
10 0
long range rf transmitter voltage:
12v
long range rf transmitter range:
100m
long range rf transmitter button:
4
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week long range rf transmitter and receiver
Packaging & Delivery
Packaging Details
paper box (as customers' request)
carton,500pcs per case,carton
size:48x38x36cm
42*39*37cm for 1000pcs
box dimension:7.4(L)*3.9(W)*1.7(H)cm
Port
ningbo/shanghai
Lead Time :
in two weeks

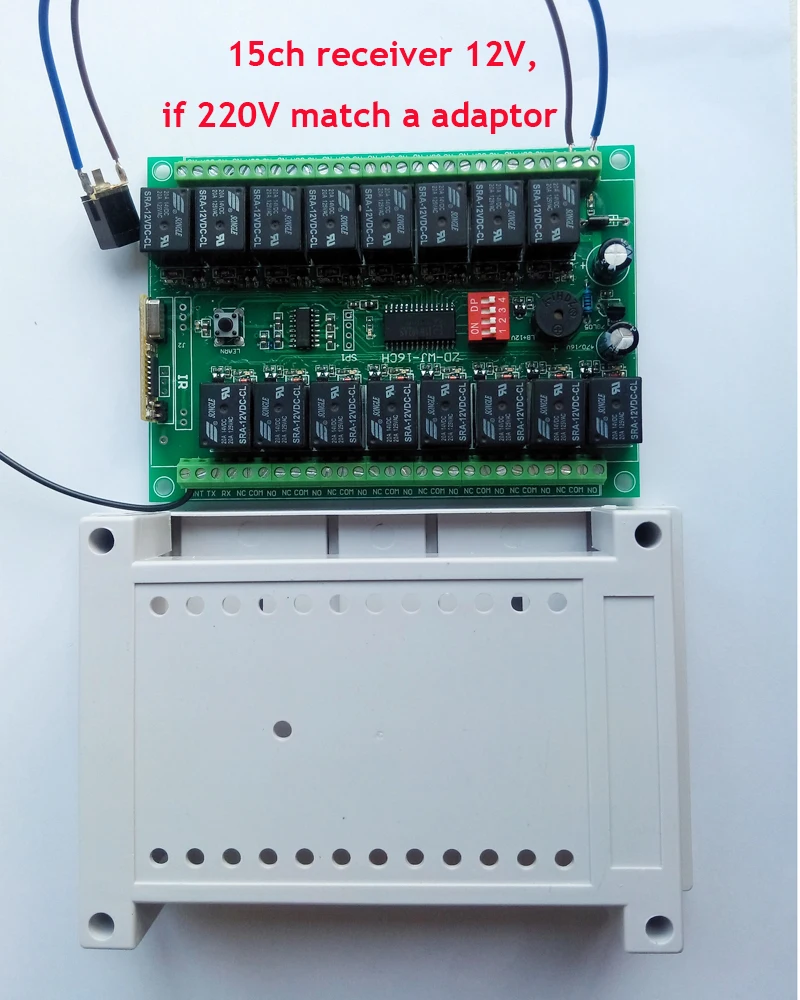

                    New Arrival ! 12/15 /16/18/20 Channel Long Range Customize RF Transmitter And Receiver 220V/12V24V



Specifications of wireless receiver



1)Crust:PVC and material,various crust for your choice, smart appearance and high quality

2)Frequency: 868MHz, 433MHz, 315MHz adjustable frequency

3)High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G)

4)Application: Garage door control

                       Access control system

                       Home/Mall Automation systems such door/window/curtain control,lights control ect.

                       Kinds of motor control system





Main Tech Data



Receiver



Max. Voltage

DC12V,24V,110V,220V optional

Max. Current

10mA

Coding type

Learning Code

Receive Frequency

315MHz/433.92MHz ±150KHz

Receiving Sensitivity

-102dB

Working Way

Latched, toggle, momentary

Output Mode

Contact output(AC and  )

PCB Size

47 x 67 x 20mm

Working Temperature

-10 to +60 centigrade

Output state

Self-locking/interlocking/momentary

Certification

ISO9001:2008,CE&RoHS

encoding type

fixed code/learning code/rolling code

funuction

self-locking/interlocking/mometary



remote control



Operating voltage

DC12V

Operating Current

<=12mA

Operating frequency

315/433.92MHz(optional)

Transmit power

>=10mW

Transmission speed

50-60khz

Frequency windage

+_0.2mhz

Control distance

100meters(open space)

Oscillation resistance

As per customer's request

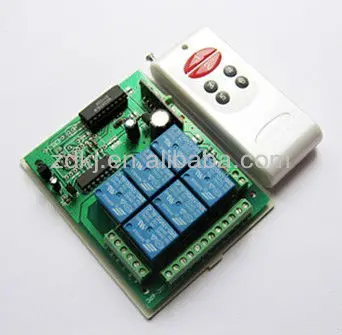

RF02.jpgRF04.jpgHTB1W78QHpXXXXXvXpXXq6xXFXXXi.jpg15channels transmitter and receiver-315channels transmitter and receiver-1

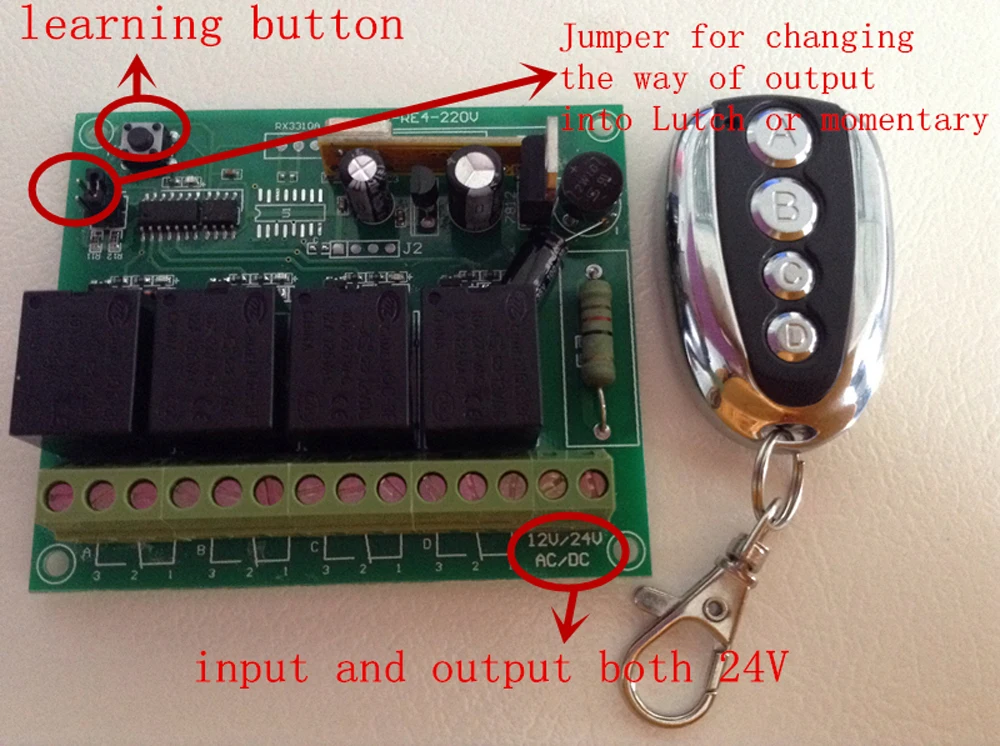

 AF06





Output Way

A. Self-lock----The short circuit plug into the left.

B. Interlock----The short circuit plug into the right.

C. Inching -----The short circuit vacancy, do not connect.

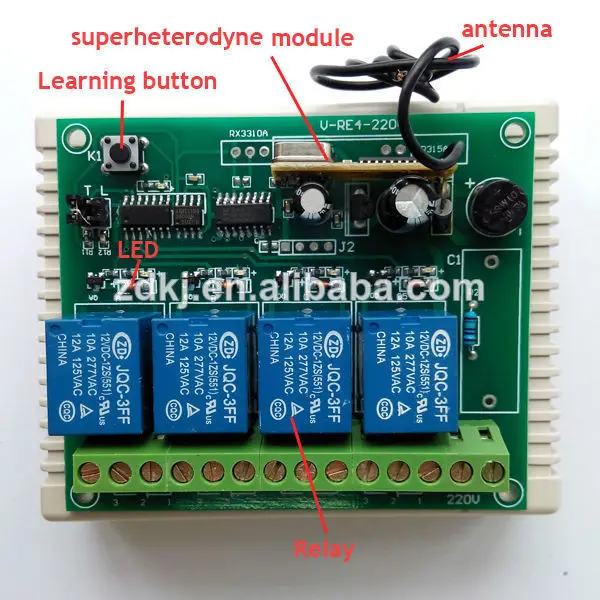

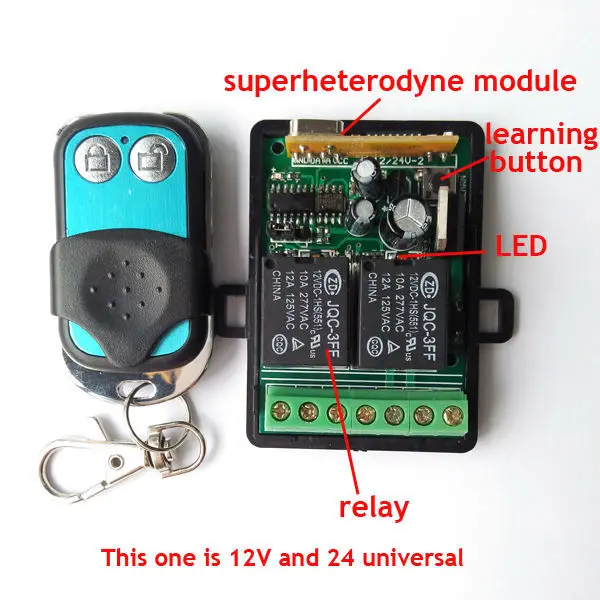

Learning Way

Press learning button,the learn indicator light once then off it means entering

learning state, press any button of the remote control transmitter signal ,

indicator light one second then off, it means learning succeed.

Remark: This controller can learning many different remote control, if beyond

the first remote automatic  .







Package &shipping :

Package: 1pc/color box , 500pcs/carton. carton size:42*39*20cm, .W:18kgs

Shipping:  By sea or by  , for your option.





MOQ

100pcs( accept trial order)

Package

Each item use poly bag,blister,paper box or as per customers'request

Accept

OEM, ODM print logo on the case and package

FOB port

SHANGHAI or NINGBO

Package

Paper box, poly bag can be customized

Payment

T/T, Paypal and western union, other payment terms can negotiable

Shipment

by FEDEX, DHL,UPS,EMS or by sea,by air based on your requirements.

warranty

one year warranty

Delivery time

Usually 7 to 15 days

contact person

Aimee Fan  skype:aimee.fan92  phone:18768125981












Certificate and factory:.jpg

CE and Rohs.jpgISO.jpg





FAQ:

1.Are you a manufacturer?



A:Yes,we have our own production line,professional sales team and R&D team,very glad to service for you.







2.Where is your factory?  Can I go to visit your factory?



A: In Hangzhou city, Zhejiang province, around 50minutes from SHANGHAI.



  All our clients, from home or abroad, are warmly welcome to visit us!







3.Can I order some radio remote control rc transmitter receiver samples for testing and  evaluation?



A:Of course, we can supply.







4.What's your MOQ of radio remote control rc transmitter receiver ? May I mix styles and colors?



A: MOQ of radio remote control rc transmitter receiver is 100PCs per model, mix colors acceptable, mix styles are based on your quantity.







5.What's the delivery time of radio remote control rc transmitter receiver?



A: 7 to 15 days.







6.What's your packing of radio remote control rc transmitter receiver?



A:Standard packing for radio remote control rc transmitter receiver ,in a small white/color box per piece and 500pcs or 1000pcs/CTN.Of course customize-  is warmly welcomed.







7.Can you supply OEM, ODM service of radio remote control rc transmitter receiver?



A:Of course, we can, we have professional R&D team   for you.MOQ is 1000PCS.







8.What's price terms of radio remote control rc transmitter receiver you offer to?



A: EXW, FOB, CIF, CNF etc.







9.What payment terms could you accept of radio remote control rc transmitter receiver ?



A:TT (Bank transfer), PayPal or Western union, can be negotiable.
